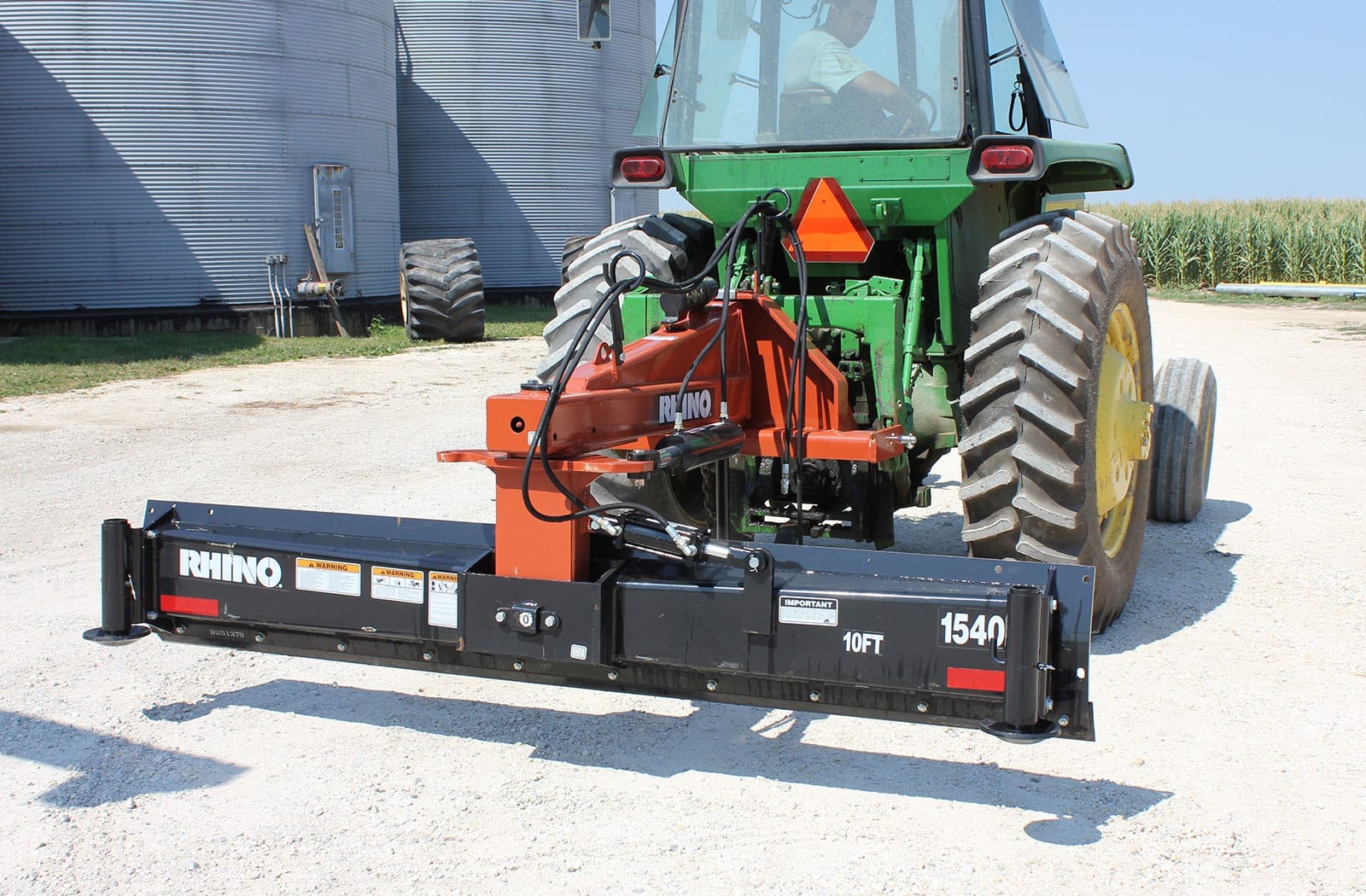

1540 Blade

The 1540 blade (2WD, 190 PTO HP tractors max.) is available in widths of 8′ and 10′ and features a heavy-duty CAT 2-3 three-point hitch and quick-hitch. The 10′ model is rated for up to 160 PTO HP wheel-type tractors. The 1540 blade is available with either hydraulic or manual mainframe swing, moldboard angle, and moldboard tilt. The 1540 blade can be offset a maximum of 37″ for working outside the dual wheels on larger horsepower tractors. The 4″ diameter solid steel kingpin, boxed section reinforced 1/2″ x 18″ moldboard, and the superior strength of the mainframe ensure dependability. The bolt-on gauge wheels are an excellent feature in helping to control the cutting depth. This is especially critical when trying to leave a smooth finish. Skid shoes, quick-tach end plates, and single or dual gauge wheels are optional equipment to help make the 1540 a more versatile tool.
