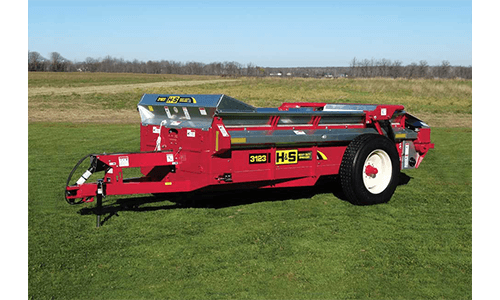

3123

MODEL 3123 FEATURES

A massive unitized welded frame with heavy floor supports and side stakes, wrap around steel front corners. Strong rear main beater side panels are slanted for clearance and wider spread, and then welded to the strong 5″ U channel side members compare with any on the market.

The side flares on all H&S “Heavy Duty” manure spreaders are made of 10 gauge g210 culvert grade galvanized steel.

Sides, front panel and both sides of the rear hydraulic end gate use fiberglass reinforced plywood to provide for easy cleaning and minimal freeze up. It also features a plastic coated plywood floor. Considerably less torque is needed to move a heavy load.

A front splash guard is standard equipment.

Greasable bearings.

The drive utilizes the patented H&S 2 speed gear box. Shifting is all done in the enclosed two speed/beater shutoff gear box.

A 29″ diameter beater with 14 replaceable beater paddles. The beater has two types of paddles, blunt for widespread and sharp ripper type for cutting and shredding. The beater side wiper blades are also standard equipment.

Adjustment for the main apron is easy by simply loosening the two side bolts and drawing up the long bolt.

Unloading Speed for 3123 and 3127 – (2 speed gear box) High Speed: PTO speed 540 rpm’s 8′9″ per minute Low Speed: PTO speed 540 rpm’s 4′9″ per minute.

OPTIONS

A rear pan is optional on all models.

A variable speed hydraulic drive is also available on 3123, 3127, 3131, 3137, 3143, and W3143.

Top beater to provide load leveling and spreading of high heaped loads is available on 3123, 3127, 3131, and 3137.

A semi-liquid hydraulic end gate is standard equipment on all models. An optional second hydraulic end gate cylinder is available for the 3123, 3127, and 3131. The hydraulic lines are run through a 3×3 tube under the floor. The upright position of the hydraulic cylinder stroke allows the gate to lift with the least strain at pivot points.
