3166

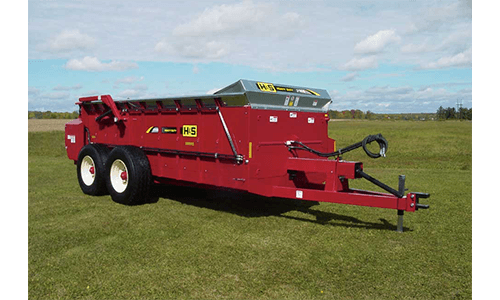

HEAVY DUTY MANURE SPREADER MODEL 3166 – 660 BUSHEL FEATURES

The 3156 and 3166 manure spreaders feature a heavy duty 7″ structural Heavy Duty Manure Spreaders steel channel iron frame with a double channel iron pole for superior strength.

The box of the 3156 and 3166 spreaders consist of solid virgin grade poly floor, T-bar chain for a strong double main apron and plastic coated plywood sides, front, and endgate.

The 3166 running gear consists of stress proof 3″ diameter spindles w/12000# hubs and a 4.5″ stress proof axle pivot.

The 3156 features 425×22.5 used truck tires with 8000 lb. hubs.

The side flares on all H&S “Heavy Duty” manure spreaders are made of 10 gauge g210 culvert grade galvanized steel.

Variable speed hydraulic drive

Constant velocity PTO.

A rear side hinged door on the beater drive allows easy access for servicing and adjustment of the spring loaded tighteners. A heavy duty worm drive gear box, chain reduction, and a four jaw override beater clutch are H&S TOUGH!

A front splash guard is standard equipment.

Greaseable bearings.

The beater top is standard equipment and both beaters have 18 replaceable blades.

H&S uses cast special steel alloy apron idler slides instead of idler sprockets making for years of dependable service.

Adjustment for the main apron is easy by simply loosening the two side bolts and drawing up the long bolt.

A second hydraulic endgate cylinder is standard.

OPTIONS

A rear pan is optional on all models.
