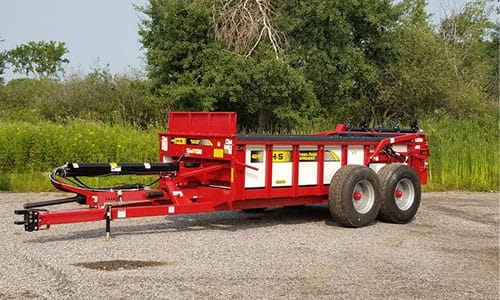

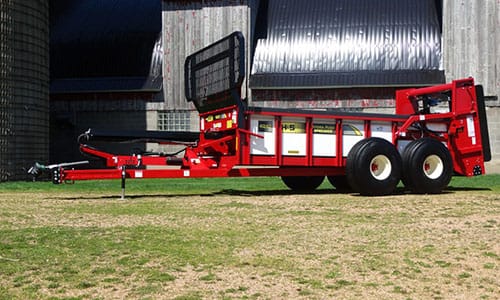

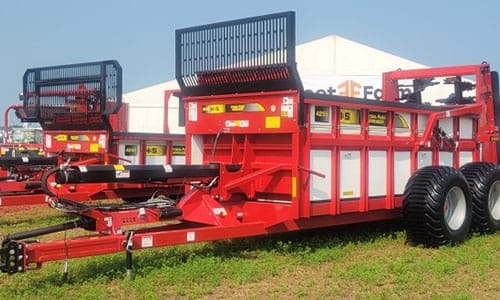

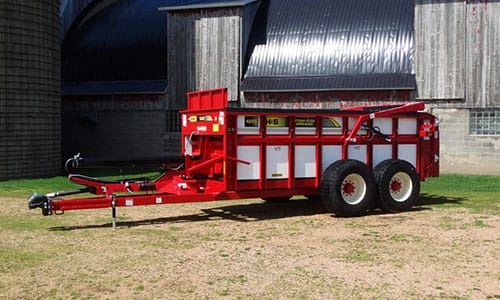

HPH4242

HPH4242 MANURE SPREADER INFORMATION

Horizontal beaters.

All Hydraulic Push models use solid virgin grade poly with UV inhibitor, for the floor and sides allowing less friction.

The hydraulic endgate has 2 cylinders with ⅜″ hose and pipe for faster operation in cold weather.

A top beater is standard equipment.

Heavy duty rectangular tubing is used for the pole to ensure strength and long life. Structural channel floor supports spaced 9 ½″ apart are used for maximum floor support.

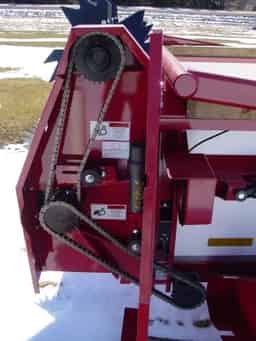

The HP’s PTO beater drive system is driven by the unique center drive system that consists of a straight shaft off the PTO underneath the manure spreader to an angle gearbox in the rear, and over to the beater drive sprocket.

#80 chains are used for strength and long life and easy open shields makes lubrication easy.

The Hydraulic Push-Off System on all models features two hydraulic cylinders that sequence to reduce push-off forces for fast unloading of material.

Beater blades are replaceable and the beater assembly is removable for stockpiling manure.

Removal of the beater assembly is done by simply removing the mounting bolts and a drive chain.
